The OAMPDUs received by the port on the left (MAC A) will be delivered to OAM client located above OAM SL Z (not shown). This is one direction of the use case described in 8A.3.
Â
Â

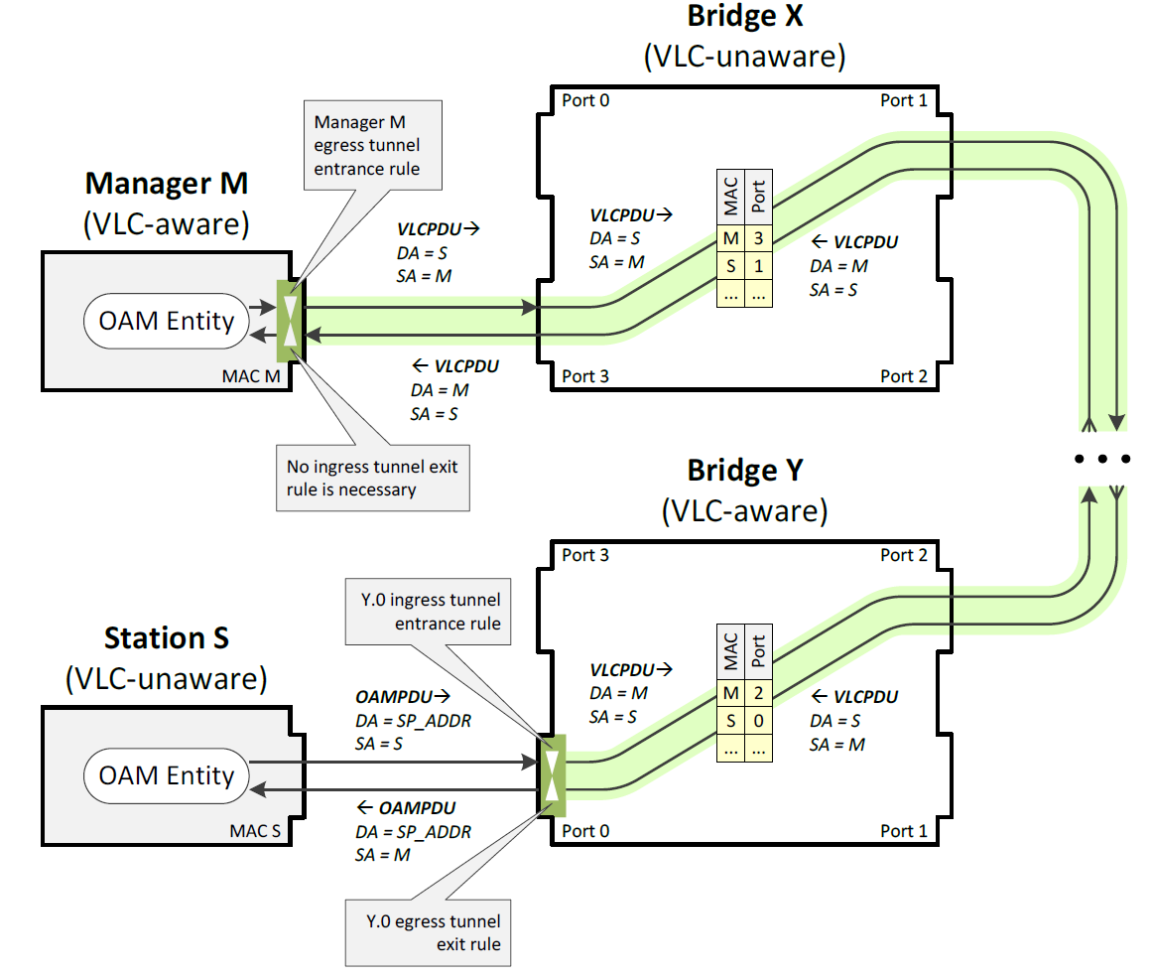

The diagram below corresponds to the direction from Station S to Manager M. Port A below is the same as Bridge Y Port 0 here, port Z is the same Port M (Manager) here. The diagram below shows only one intermediate bridge, but there can be any number of them.
Â
-Glen
Â
From: Kevin Noll <kevin.noll@xxxxxxxxxxxx>
Sent: Wednesday, October 28, 2020 12:48 PM
To: STDS-1904-2-TF@xxxxxxxxxxxxxxxxx
Subject: [1904.2 TF] Expected Forwarding Behavior?
Â
Glen, et al,
Â

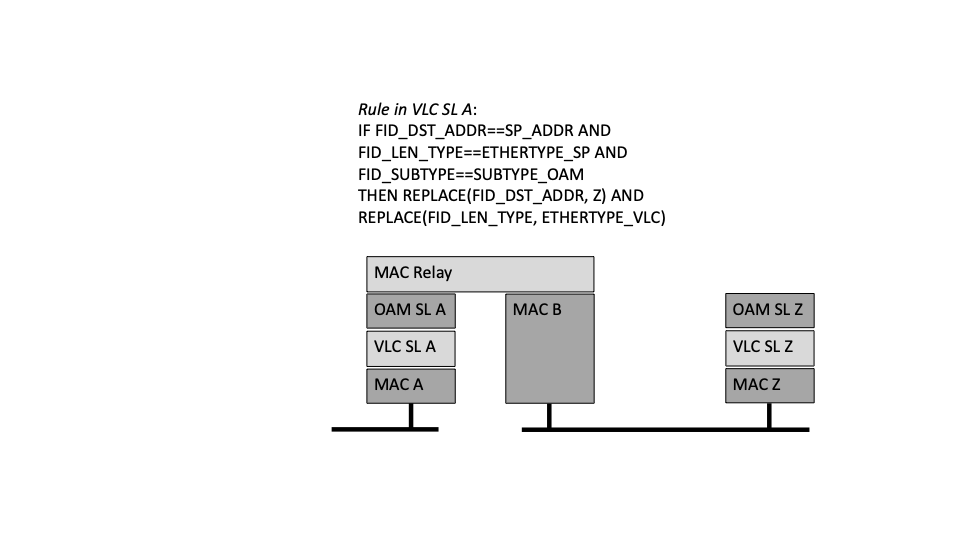

Given the topology and rule in the picture below, what is the expected behavior?
Â
Â
Â
