Re: [1904.2 TF] OAM Destination MAC Address

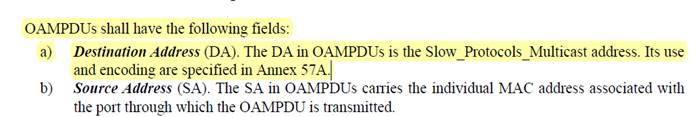

No, not allowed per 802.3, Clause 57:





-Glen



From: Kevin Noll <kevin.noll@xxxxxxxxxxxx>
Sent: Sunday, November 01, 2020 6:41 PM
To: Glen Kramer <glen.kramer@xxxxxxxxxxxx>
Cc: stds-1904-2-TF@xxxxxxxxxxxxxxxxx
Subject: OAM Destination MAC Address



Glen,



Is it allowed for an OAMPDU to have a destination MAC address that is NOT SP_MAC_ADDR, but is the MAC address of the destination OAM peer?



For example:



Given two IEEE 802.3 Clause 57 OAM Sublayer entities: OAM Peer A and OAM Peer Z



What is the expected behavior at OAM Peer Z, if OAM Peer A sends an OAMPDU with SRC_ADDR==OAM Peer A and DST_ADDR==OAM Peer Z ??



Will OAM Peer Z correctly receive and process the OAMPDU? Will it drop the OAMPDU? Will it do something else?



--

Kevin A. Noll
